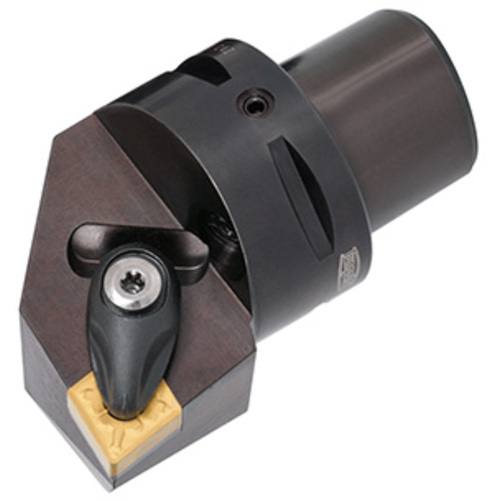

C3ACLNR22040-12N
Turning Toolholder; 2.323″ OAL × 1.26″ Shank Dia. ; Right Hand ; Steel
| Overall Length (OAL) | 2.323″ | Master Insert Identification (MIID) | CNMG432 |
| Functional Length (LF) | 1.575″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Functional Width (WF) | 0.866″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 4.764″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | TungCap Double-clamp toolholder with 95 deg approach angle for negative 80 deg rhombic inserts | Country of Origin | Japan |
| Remarks | Applicable for 7 MPa coolant |
