JPDJ2XL1212X07

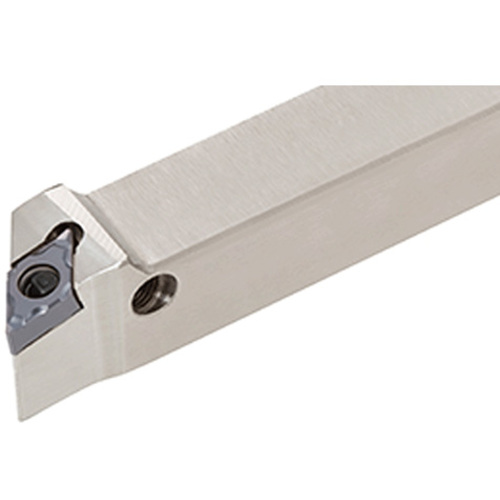

Turning Toolholder; 120 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 14 mm LH ; Left Hand ; Steel

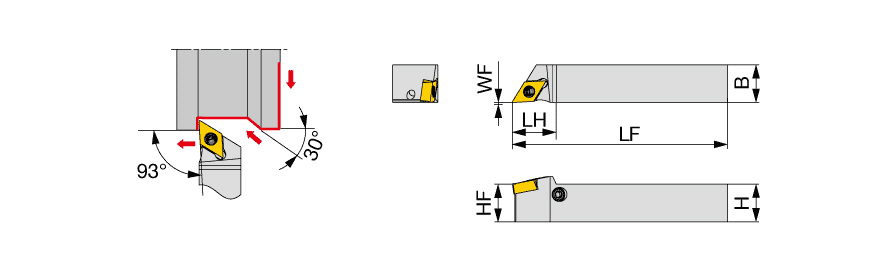

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | DXGU070302R |
| Overall Length (OAL) | 120 mm | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 120 mm | Body Material | Steel |
| Head Length (LH) | 14 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Back clamp toolholder with 93deg approach angle for DX*U inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.328
