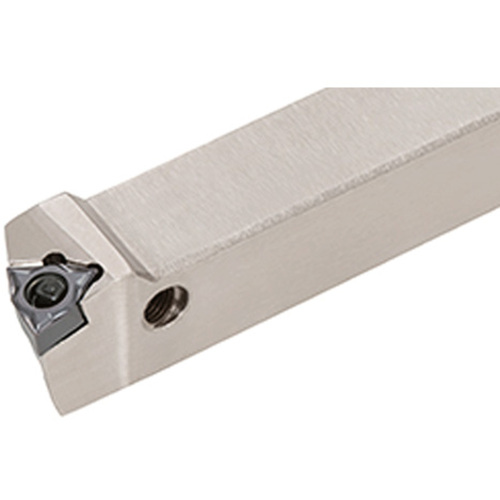

JPWL2XL102
Turning Toolholder; 4-3/4″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 1/2″ LH ; Left Hand ; Steel

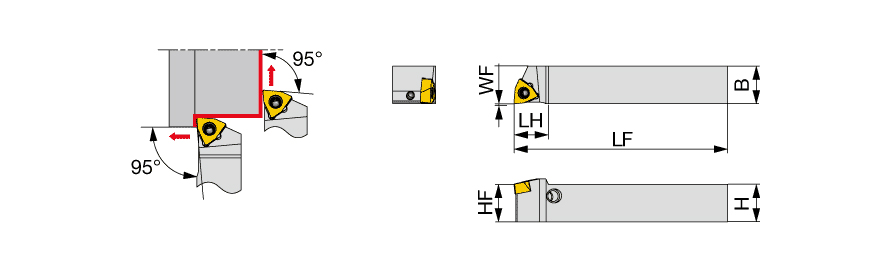

| Shank Height (H) | 5/8″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 5/8″ | Master Insert Identification (MIID) | WXGU220.5R |
| Overall Length (OAL) | 4-3/4″ | Application | | For 80deg Trigon insert | For Miniature machining | |
| Functional Length (LF) | 4-3/4″ | Body Material | Steel |
| Head Length (LH) | 1/2″ | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Functional Width (WF) | 0″ | Measurement Type | Inch |
Product Features
| Family Description | No-offset Back clamp toolholder with 95deg approach angle, for WXG* inserts | Country of Origin | Japan |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0
