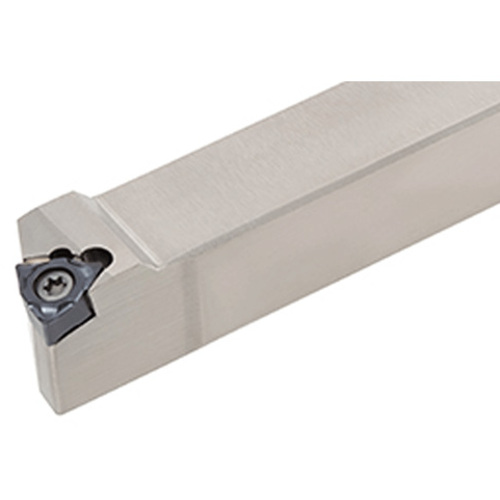

JSWL2XR1212F04
Turning Toolholder; 85 mm OAL × 12 mm Shank Height × 12 mm Shank Width × 11 mm LH ; Right Hand ; Steel

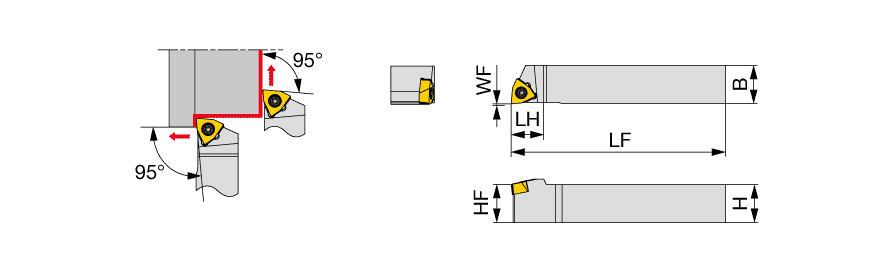

| Shank Height (H) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 12 mm | Master Insert Identification (MIID) | WXGU040302L |
| Overall Length (OAL) | 85 mm | Application | | For 80deg Trigon insert | For Miniature machining | |
| Functional Length (LF) | 85 mm | Body Material | Steel |
| Head Length (LH) | 11 mm | Tool Type | TOOLHOLDERS - FOR EXTERNAL TURNING AND FACING |
| Functional Width (WF) | 0 mm | Measurement Type | Metric |
Product Features
| Family Description | No-offset Screw-on toolholder with 95deg approaach angle, for WXG* inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Left hand toolholders (L) are used with right hand inserts (R). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.243
