PDJNL1033

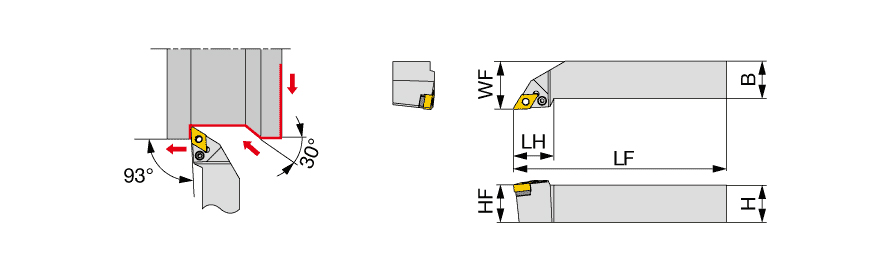

Turning Toolholder; 4″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 1-1/8″ LH ; Left Hand ; Steel
| Shank Height (H) | 5/8″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 5/8″ | Master Insert Identification (MIID) | DNMG332 |
| Overall Length (OAL) | 4″ | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 4″ | Body Material | Steel |
| Head Length (LH) | 1-1/8″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 7/8″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**33... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.478
