PCLNR1233

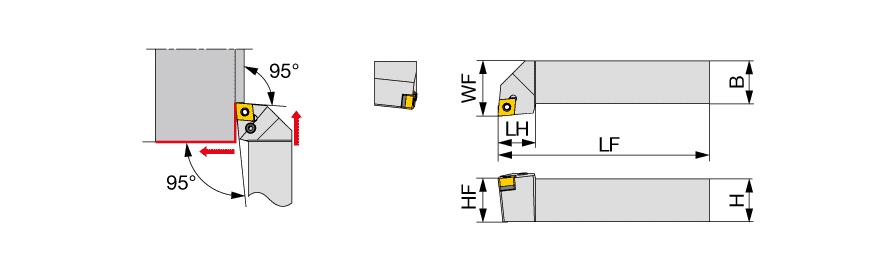

Turning Toolholder; 4-1/2″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 0.813″ LH ; Right Hand ; Steel
| Shank Height (H) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 3/4″ | Master Insert Identification (MIID) | CNMG332E |
| Overall Length (OAL) | 4-1/2″ | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 0.813″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts CN**33... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.763
