PDJNR1616H1104

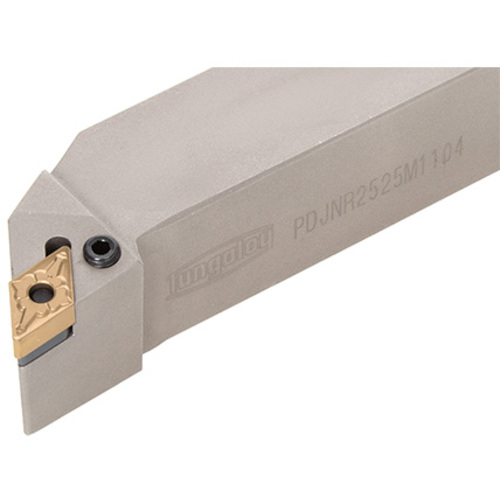

Turning Toolholder; 100 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 27 mm LH ; Right Hand ; Steel

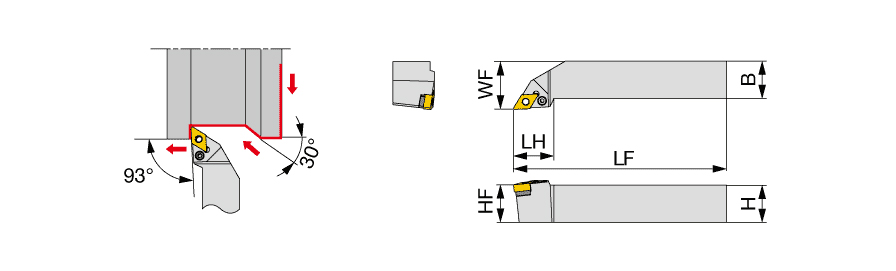

| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | DNMG110408 |
| Overall Length (OAL) | 100 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 100 mm | Body Material | Steel |
| Head Length (LH) | 27 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 20 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock type toolholder with 93deg approach angle, for negative 55deg rhombic inserts DN**1104... | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.454
