JSTBL083
Turning Toolholder; 5″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 5/8″ LH ; Left Hand ; Steel

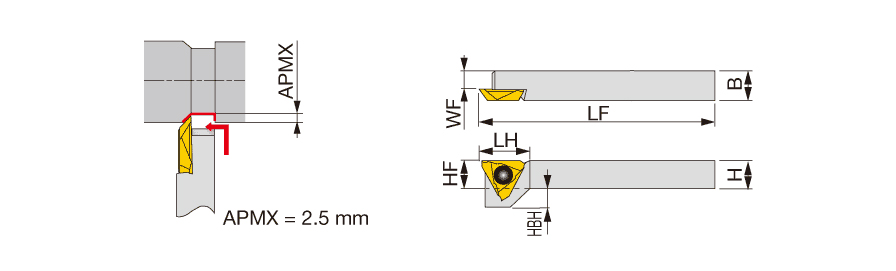

| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1/2″ | Master Insert Identification (MIID) | JTBL3000F |
| Overall Length (OAL) | 5″ | Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 5″ | Body Material | Steel |
| Head Length (LH) | 5/8″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 0.313″ | Measurement Type | Inch |
Product Features
| Family Description | No-offset Screw-on toolholder for back turning with JTBR/L3** inserts | Country of Origin | JAPAN |
| Remarks | Can be wrenched from back side with double socket torx screw. Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.388
