JSVL2PR082

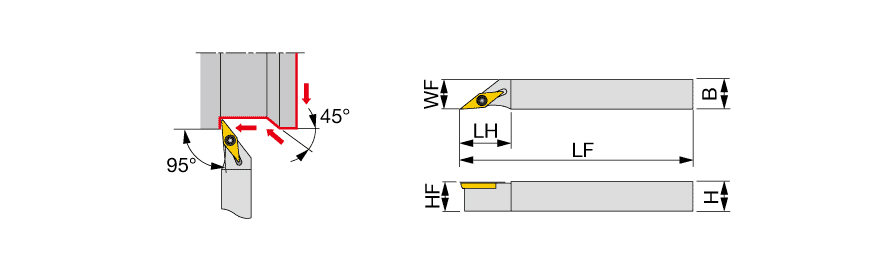

Turning Toolholder; 5″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 0.813″ LH ; Right Hand ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1/2″ | Master Insert Identification (MIID) | VPET220.5 |
| Overall Length (OAL) | 5″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Body Material | Steel |
| Head Length (LH) | 0.813″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1/2″ | Measurement Type | Inch |
Product Features
| Family Description | No-offset Screw-on toolholder with 95deg approach angle, for positive 35deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.375
