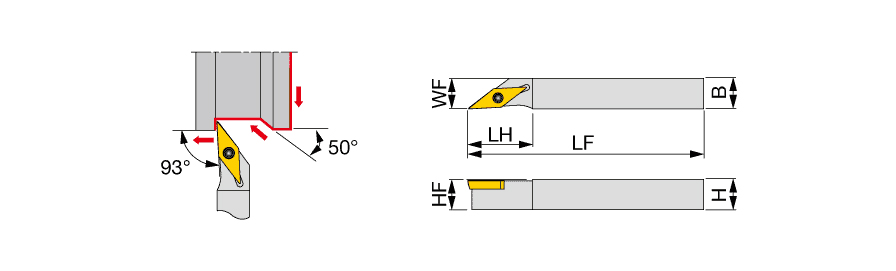

JSVJ2BL102
Turning Toolholder; 5″ OAL × 5/8″ Shank Height × 5/8″ Shank Width × 0.813″ LH ; Left Hand ; Steel
| Shank Height (H) | 5/8″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 5/8″ | Master Insert Identification (MIID) | VBGT220.5 |
| Overall Length (OAL) | 5″ | Application | | For 35deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Body Material | Steel |
| Head Length (LH) | 0.813″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 5/8″ | Measurement Type | Inch |
Product Features
| Family Description | No-offset Screw-on toolholder with 93deg approach angle, for positive 35deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
