JSDNCN082
Turning Toolholder; 5″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 0.563″ LH ; Neutral ; Steel

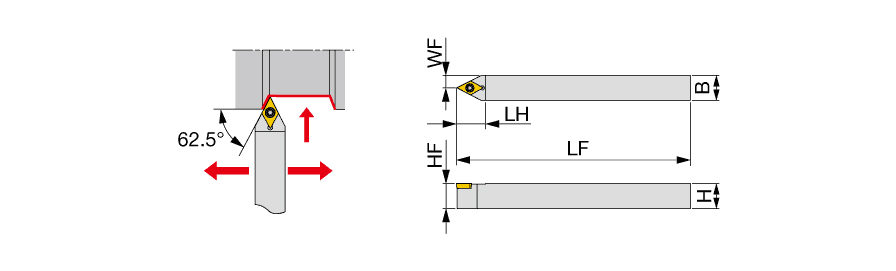

| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 1/2″ | Master Insert Identification (MIID) | DCGT21.50.5 |
| Overall Length (OAL) | 5″ | Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 5″ | Body Material | Steel |
| Head Length (LH) | 0.563″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Screw-on clamp toolholder with 62.5deg approach angle, for positive 55deg rhombic inserts | Country of Origin | Japan |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.381
