PTGNL1623

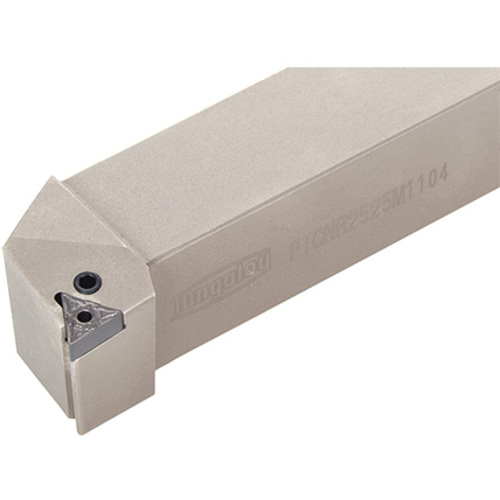

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width × 3/4″ LH ; Left Hand ; Steel

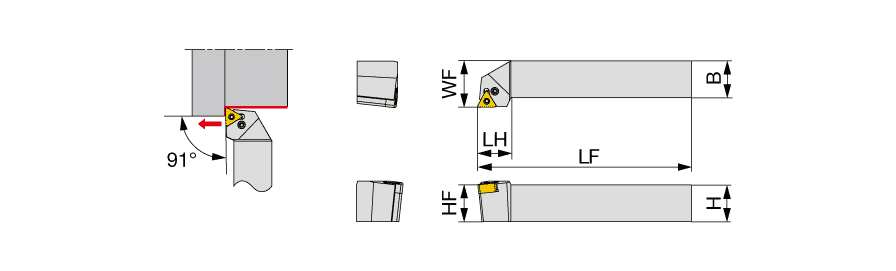

| Shank Height (H) | 1″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1″ | Master Insert Identification (MIID) | TNMG232E |
| Overall Length (OAL) | 6″ | Application | | For Triangular insert | |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 3/4″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
Product Features
| Family Description | Lever lock type toolholder with 91deg approach angle, for negative triangle inserts TN**23... | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
1.724
