C4SWLXR11070-04

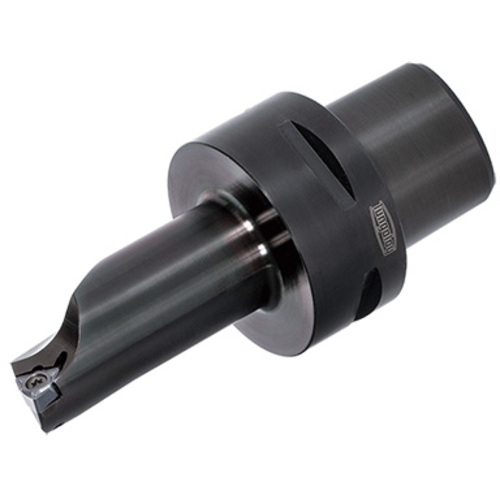

Turning Toolholder; 3.701″ OAL × 1.575″ Shank Dia. ; Right Hand ; Steel

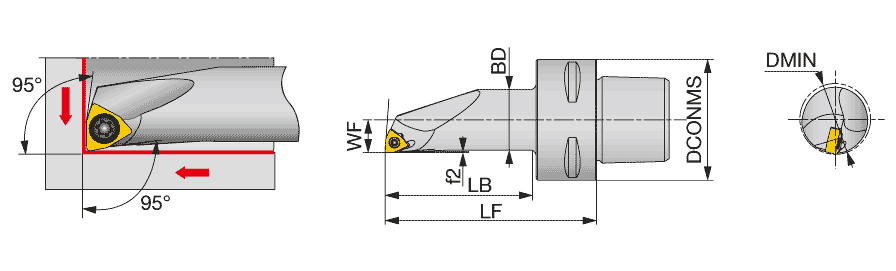

| Overall Length (OAL) | 3.701″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2.756″ | Master Insert Identification (MIID) | WXGU221L |
| Functional Width (WF) | 0.433″ | Application | | Face contact interface | For 80deg Trigon insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.866″ | Measurement Type | Inch |
Product Features
| Family Description | TungCap Screw-on type boring bar with 95 deg approach, for negative trigon inserts | Country of Origin | JAPAN |
| Remarks | Right hand toolholders (R) are used with left hand inserts (L). Applicable for 7 MPa coolant |
Shipping Info
Package Weight
1.025
