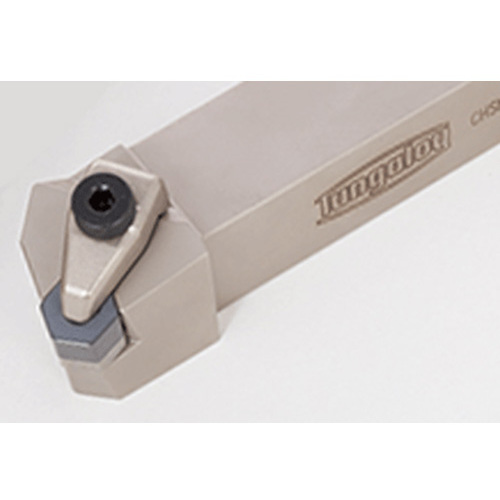

CHSNR2525M0507-RD
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 32 mm LH ; Right Hand ; Steel

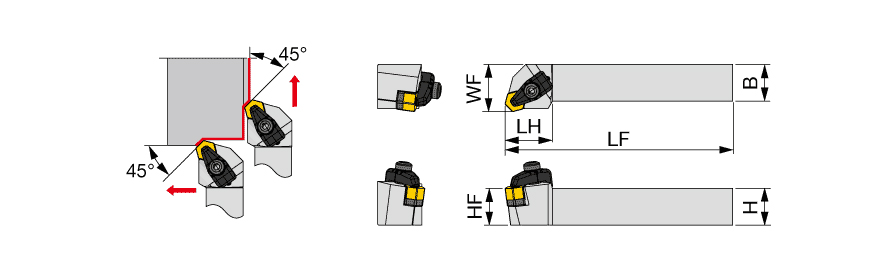

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | HNGD050712 |
| Overall Length (OAL) | 150 mm | Application | | For Hexagonal insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 32 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder for ceramic insert with dimple, 45deg approach angle, for negative hexagonal inserts | Country of Origin | S.Korea |
| Remarks | Recommend clamping torque: 4.0 Nm |
Shipping Info
Package Weight
1.790
