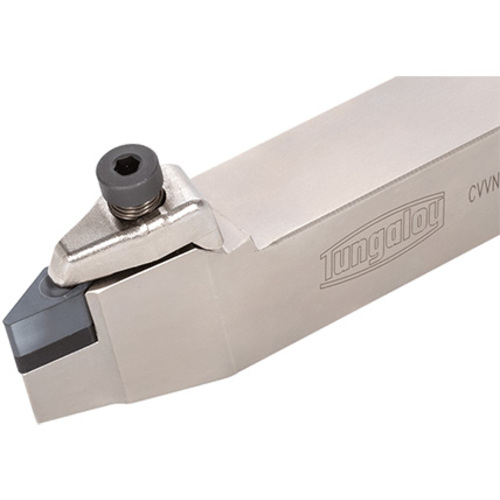

CVVNN2525M1607-RD

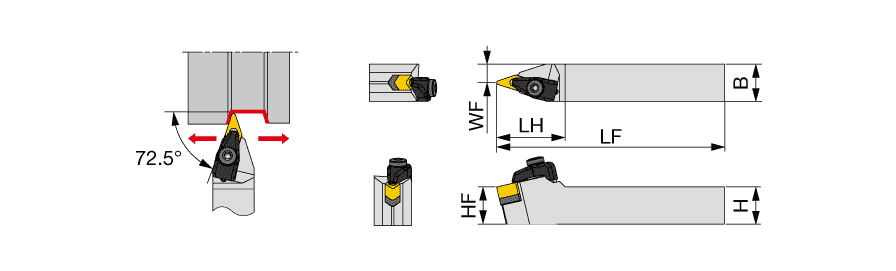

Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 46 mm LH ; Neutral ; Steel
| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | VNGD160712 |
| Overall Length (OAL) | 150 mm | Application | | For 35deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 46 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 12.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder for ceramic insert with dimple, 72.5deg approach angle, for negative 35deg rhombic inserts | Country of Origin | S.Korea |
| Remarks | Recommend clamping torque: 4.0 Nm |
Shipping Info
Package Weight
1.594
