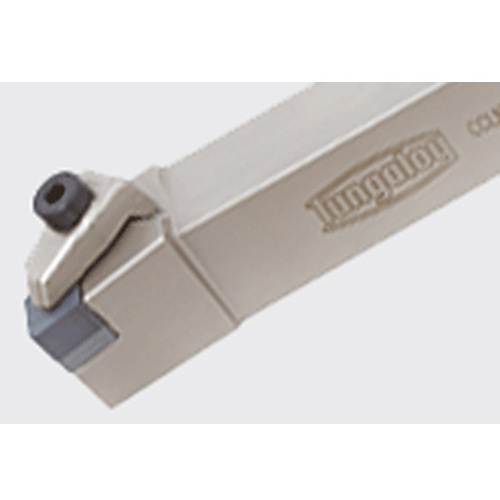

CCLNL2525M1207-RD
Turning Toolholder; 150 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 33 mm LH ; Left Hand ; Steel

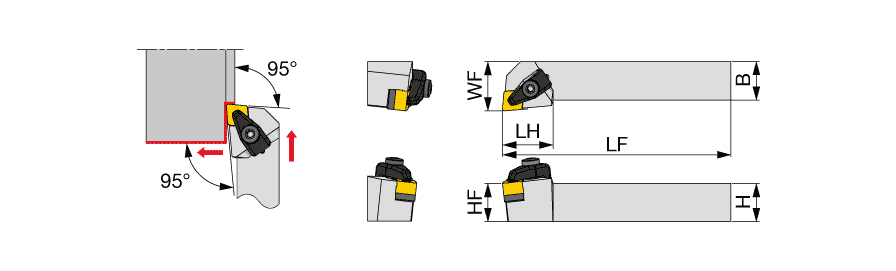

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | CNGD120712 |
| Overall Length (OAL) | 150 mm | Application | | For 80deg Rhombic insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 33 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder for ceramic insert with dimple, 95deg approach angle, for negative 80deg rhombic inserts | Country of Origin | S.Korea |
| Remarks | Recommend clamping torque: 4.0 Nm |
Shipping Info
Package Weight
1.799
