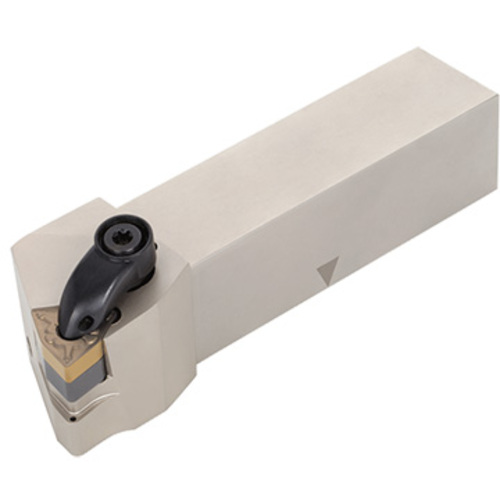

AWLNR16-4-CHP-MC
Turning Toolholder; 4.764″ OAL × 1″ Shank Height × 1″ Shank Width × 1.417″ LH ; Right Hand ; Steel

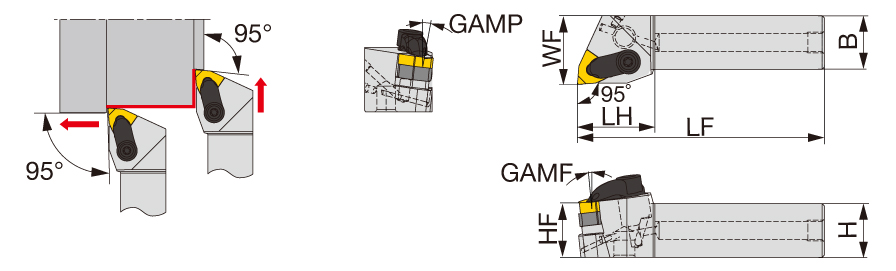

| Shank Height (H) | 1″ | Master Insert Identification (MIID) | WNMG432 |
| Shank Width (B) | 1″ | Application | | For 80deg Trigon insert | |
| Overall Length (OAL) | 4.764″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 4.764″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1.417″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholder with 95 deg approach angle, for negative trigon inserts, with high pressure coolant channels | Country of Origin | ISRAEL |
