ADJNL12-4-CHP-MC
Turning Toolholder; 4.331″ OAL × 3/4″ Shank Height × 3/4″ Shank Width × 1.575″ LH ; Left Hand ; Steel

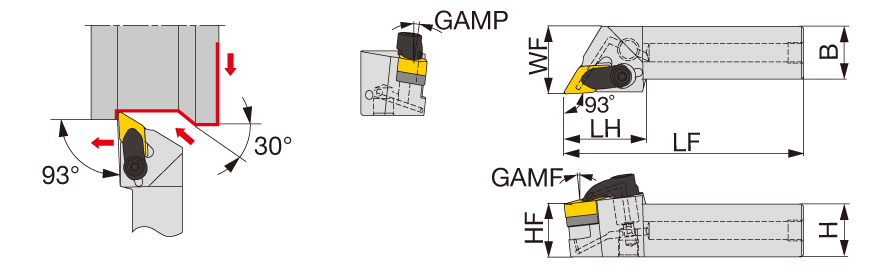

| Shank Height (H) | 3/4″ | Master Insert Identification (MIID) | DNMG442 |
| Shank Width (B) | 3/4″ | Application | | For 55deg Rhombic insert | |
| Overall Length (OAL) | 4.331″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 4.331″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1.575″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Double-clamp toolholder with 93 deg approach angle, for negative 55 deg rhombic inserts, with high pressure coolant channels | Country of Origin | Israel |
