AWLNR2525X-08-CHP-MC

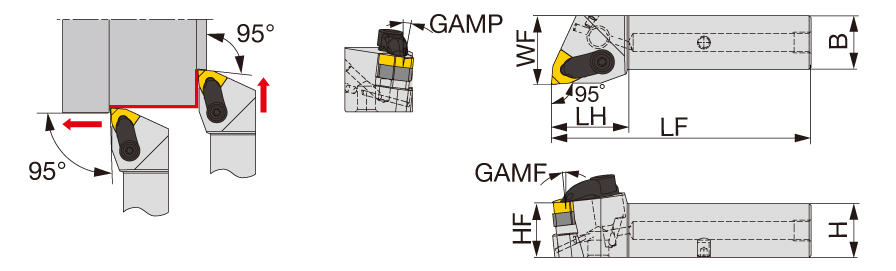

Turning Toolholder; 121 mm OAL × 25 mm Shank Height × 25 mm Shank Width × 36 mm LH ; Right Hand ; Steel
| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | WNMG080408 |
| Shank Width (B) | 25 mm | Application | | For 80deg Trigon insert | |
| Overall Length (OAL) | 121 mm | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 121 mm | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 36 mm | Body Material | Steel |
| Functional Width (WF) | 32 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Double-clamp toolholder with 95 deg approach angle, for negative trigon inserts, with high pressure coolant channels. High-pressure coolant capability with tube and direct connection. | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. Applicable for 14 MPa pressure coolant. |
Shipping Info
Package Weight
0.000
