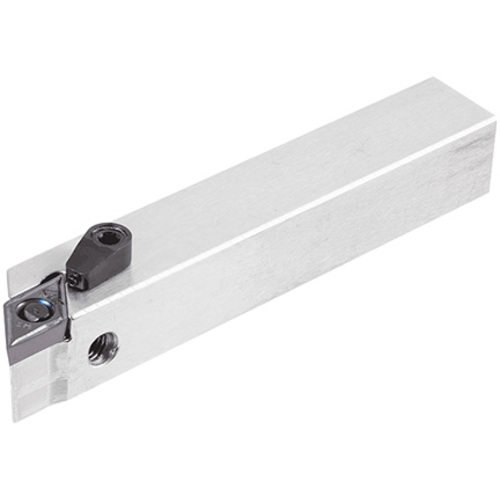

PDACR1616X11S-CHP-MC

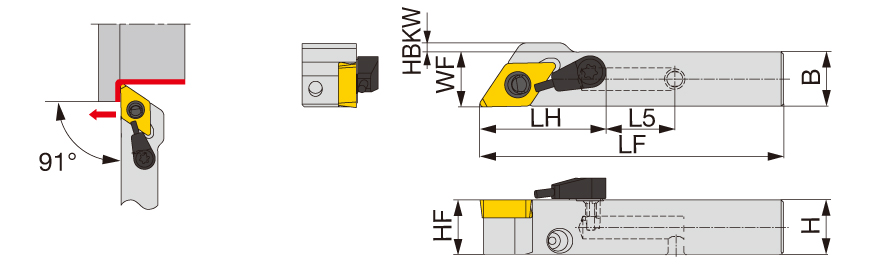

Turning Toolholder; 76 mm OAL × 16 mm Shank Height × 16 mm Shank Width × 28 mm LH ; Right Hand ; Steel
| Shank Height (H) | 16 mm | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 16 mm | Master Insert Identification (MIID) | DCGT11T302 |
| Overall Length (OAL) | 76 mm | Application | | For 55deg Rhombic insert | |
| Functional Length (LF) | 76 mm | Body Material | Steel |
| Head Length (LH) | 28 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 16.2 mm | Measurement Type | Metric |
Product Features
| Family Description | Lever lock toolholder with bottom inlets of high pressure coolant channels, carrying positive 55 deg rhombic inserts. | Country of Origin | ISRAEL |
| Remarks | Applicable for 14 MPa pressure coolant |
Shipping Info
Package Weight
0.000
