| Cutting Diameter (DC/DCX) | 16 mm | Functional Length (LF) | 25 mm |
| Cutting Diameter (DC) | 16 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm | Body Material | Steel |
| Overall Length (OAL) | 42 mm | Connection Retention Knob Thread Size (CRKS) | M8 |
| Application | | Shoulder Milling | | Shank Height (H) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ |
Product Features

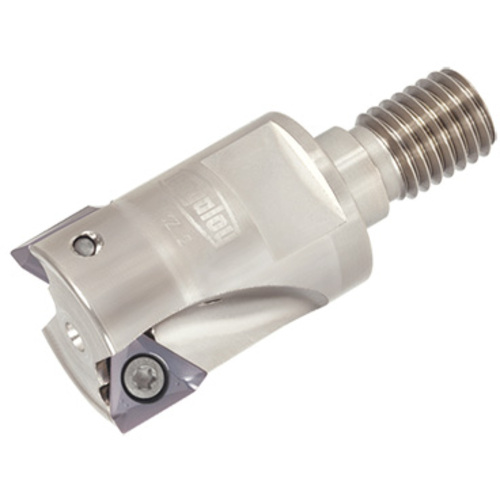

| Family Description | High precision shoulder square endmills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.179
