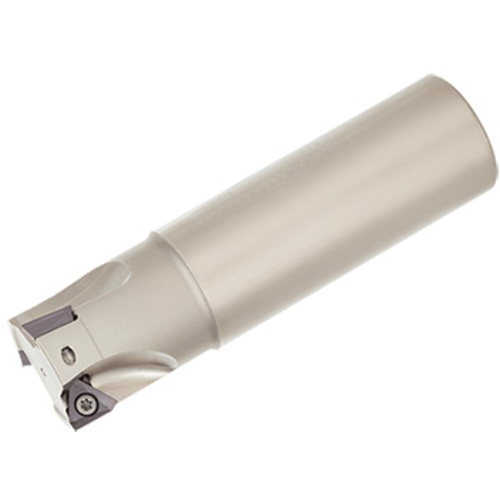

EPA10R125U0125W03N

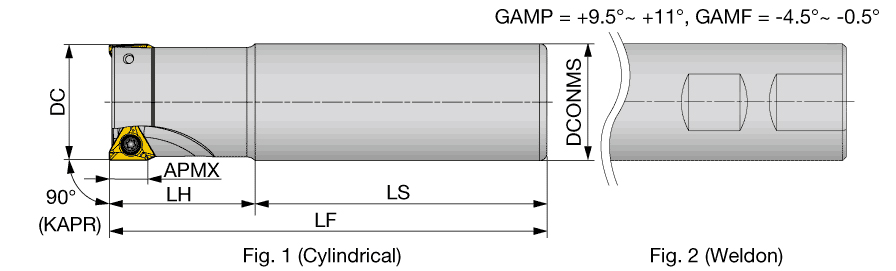

Indexable End Mill; 1-1/4″ Dia. × 0.394″ LOC × 1-1/4″ Shank Dia. × 3.74″ OAL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1.378″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 3.74″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3.74″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.362″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Master Insert Identification (MIID) | TOMT100404PDER-MJ |
Product Features
| Family Description | High precision square shoulder endmill with triangular inserts | Country of Origin | Japan |
Shipping Info
Package Weight
1.387
