EPA06R075U0075-03N

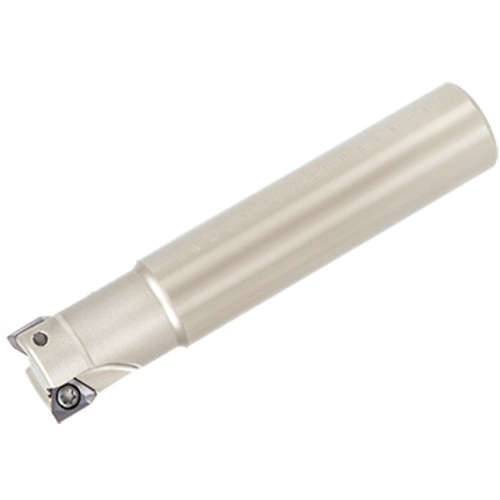

Indexable End Mill; 3/4″ Dia. × 0.236″ LOC × 3/4″ Shank Dia. × 4″ OAL ; Round Shank ; 90 Degrees

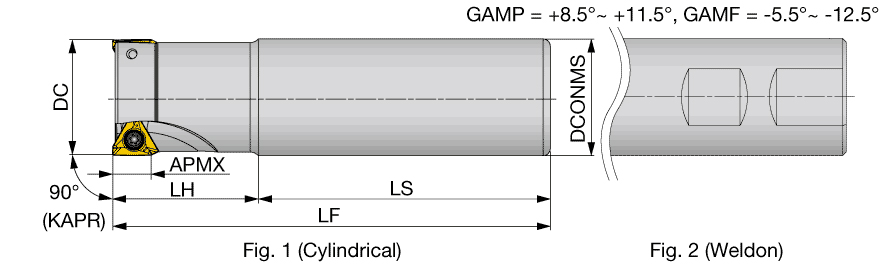

| Cutting Diameter (DC/DCX) | 3/4″ | Head Length (LH) | 1.142″ |
| Cutting Diameter (DC) | 3/4″ | Functional Length (LF) | 4″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.236″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.858″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 3/4″ |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ |
Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | Country of Origin | Japan |
Shipping Info
Package Weight
0.598
