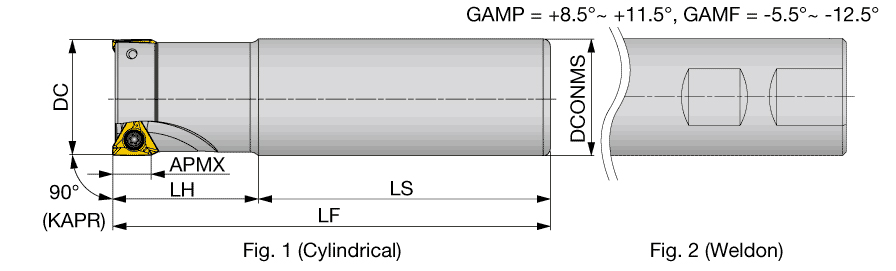

EPA06R018M16.0-02N
Indexable End Mill; 18 mm Dia. × 6 mm LOC × 16 mm Shank Dia. × 84 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 18 mm | Head Length (LH) | 24 mm |
| Cutting Diameter (DC) | 18 mm | Functional Length (LF) | 84 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 84 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 18 mm |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ |
Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.397
