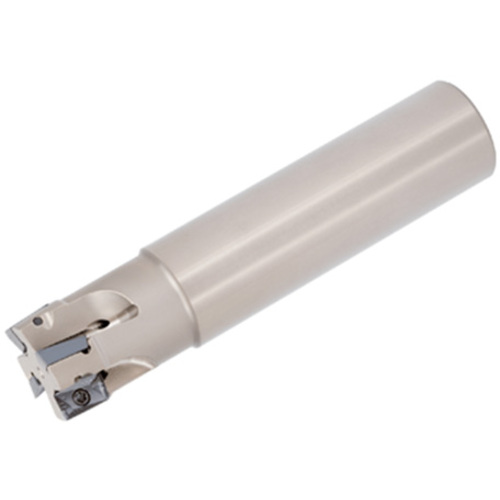

EPO11R020M20.0-03
Indexable End Mill; 20 mm Dia. × 10.6 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; Round Shank ; 90 Degrees

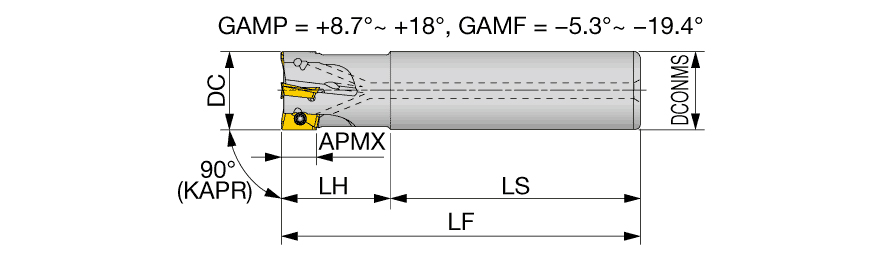

| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 20 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 10.6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Master Insert Identification (MIID) | ASMT11T304PDPR-MJ |
Product Features
| Family Description | High precision shoulder square endmills with ASMT/ASGT11 inserts | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
0.571
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
