ERP10R020M20.0-02

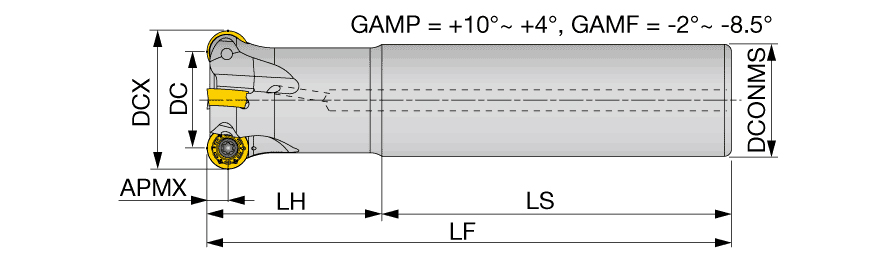

Indexable End Mill; 10 mm Dia. × 5 mm LOC × 20 mm Shank Dia. × 150 mm OAL
| Cutting Diameter (DC/DCX) | 10 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 10 mm | Functional Length (LF) | 150 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Corner rounding endmills |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 100 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Master Insert Identification (MIID) | RPMT10T3EN-MJ |
Product Features
| Family Description | FixRMill Radius cutter Series Shank type with Anti-Rotation System | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.902
