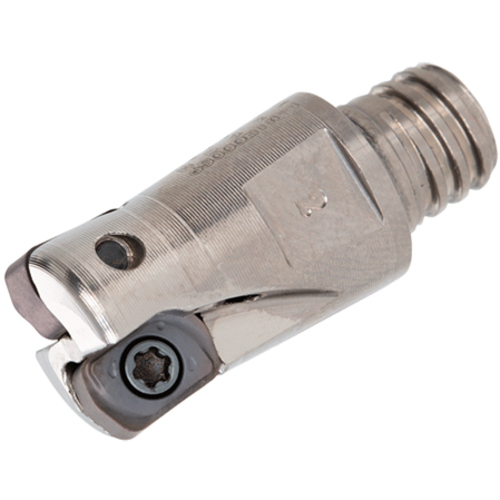

HXN02R012MS08-02
Indexable End Mill; 7.8 mm Dia. × 0.5 mm LOC × 25.5 mm OAL ; 17 Degrees

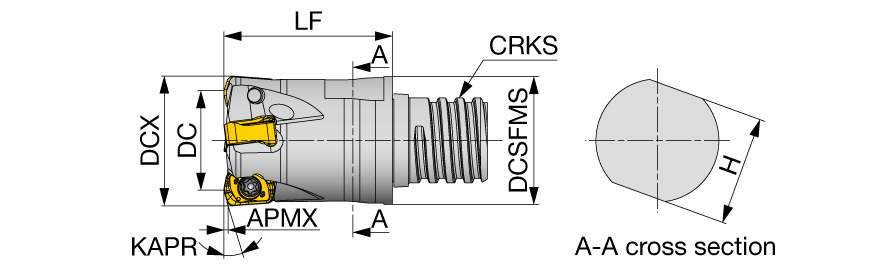

| Cutting Diameter (DC/DCX) | 7.8 mm | Tool Type | Fast Feed Endmill |
| Cutting Diameter (DC) | 7.8 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Cutting Item Count (CICT) | 2 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 0.5 mm | Body Material | Steel |
| Overall Length (OAL) | 25.5 mm | Connection Retention Knob Thread Size (CRKS) | S08 |
| Application | | High Feed Milling | | Shank Height (H) | 10 mm |
| Master Insert Identification (MIID) | LNMU0202ZER-MM | Cutting Diameter Maximum (DCX) | 12 mm |
| Functional Length (LF) | 18 mm |
Product Features
| Family Description | High feed endmill, modular type with TungMeister connection, with 4-corner double sided inserts | Country of Origin | JAPAN |
| Remarks | Wrench sold separately. |
Shipping Info
Package Weight
0.000
