EVLX19U1.50C1.25R02L

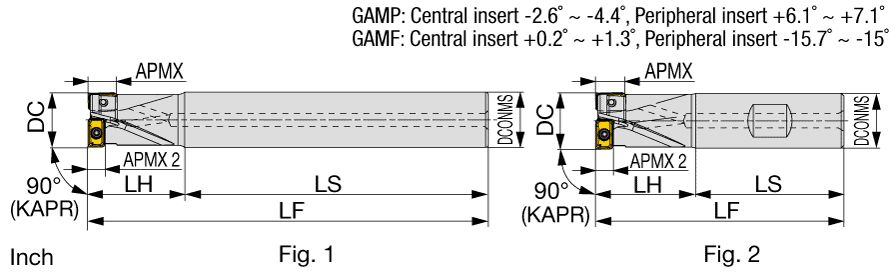

Indexable End Mill; 1-1/2″ Dia. × 0.709″ LOC × 1-1/4″ Shank Dia. × 10″ OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | LXMU190608PER-MM |
| Cutting Diameter (DC) | 1-1/2″ | Head Length (LH) | 2-1/4″ |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 10″ |
| Depth of Cut Maximum (APMX) | 0.709″ | Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 10″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Multi Functional tools | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | Multi-function endmill, shank type, with center cutting edge | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
