EPO07R100U0075-03

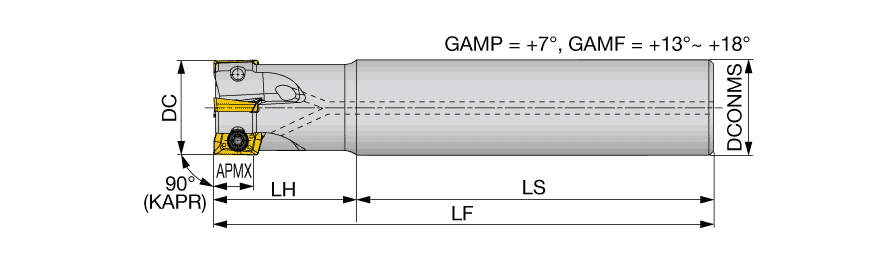

Indexable End Mill; 1″ Dia. × 0.276″ LOC × 3/4″ Shank Dia. × 3-1/2″ OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1″ | Functional Length (LF) | 3-1/2″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3-1/2″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 1″ |
| Master Insert Identification (MIID) | AOMT070204PDPR-MJ |
Product Features
| Family Description | High precision shoulder square endmills with AOMT/AOGT07 inserts | Country of Origin | Israel |
| Remarks | The DC in the above table shows the diameter when MJ and AJ chipbreakers are used. When HJ chipbreaker is used, the tool diameter is equal to the above shown DC + 0.6 mm. The LH and LF in the above table show the lengths when MJ chipbreaker is used. When AJ chipbreaker is used, the lengths are equal to LH, LF + 0.1 mm. When HJ chipbreaker is used, the lengths are equal to LH, LF + 0.5mm. APMX may vary with insert type. |
Shipping Info
Package Weight
0.564
