EPM11R150U0125W04
Indexable End Mill; 1-1/2″ Dia. × 0.381″ LOC × 1-1/4″ Shank Dia. × 4″ OAL ; Weldon Shank ; 90 Degrees

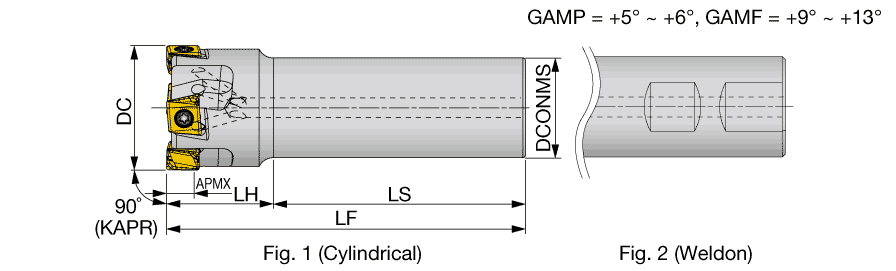

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1-3/4″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 4″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.381″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 4″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Master Insert Identification (MIID) | LMMU110708PNER-MJ |
Product Features
| Family Description | Square shoulder endmills with tangential clamped insert with 4 edges | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
