EEN09R150U0125W04

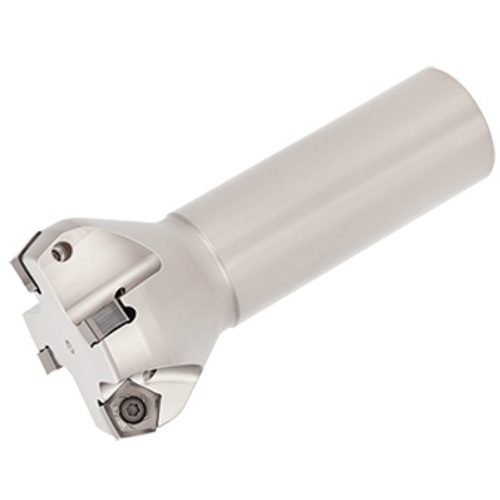

Indexable End Mill; 1-1/2″ Dia. × 1/4″ LOC × 1-1/4″ Shank Dia. × 4.28″ OAL ; Weldon Shank ; 70 Degrees

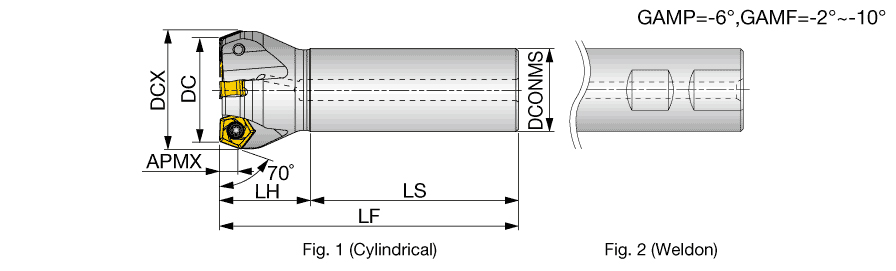

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 2″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 4.28″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 75 Facemills |
| Depth of Cut Maximum (APMX) | 1/4″ | Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Overall Length (OAL) | 4.28″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Face Milling | | Shank Length (LS) | 2.283″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1.729″ |
| Master Insert Identification (MIID) | PNMU0905GNEN-MJ |
Product Features
| Family Description | 70deg endmills with double sided pentagonal inserts. | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
