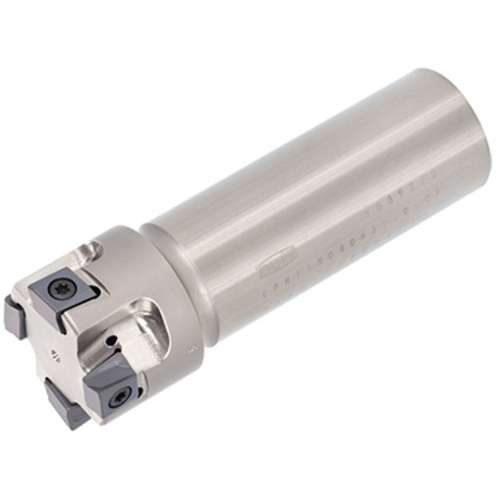

EPM11R050M32.0-04
Indexable End Mill; 50 mm Dia. × 9.7 mm LOC × 32 mm Shank Dia. × 120 mm OAL ; Round Shank ; 90 Degrees

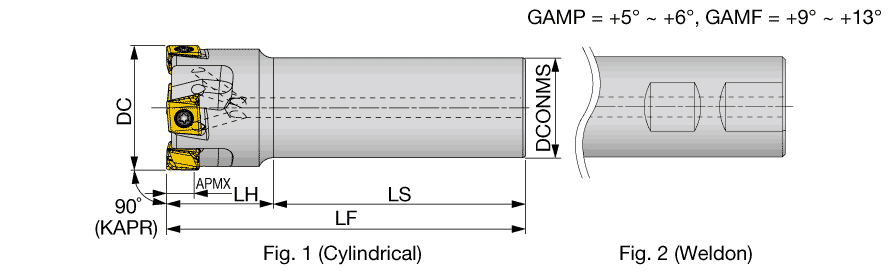

| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 9.7 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 50 mm |
| Master Insert Identification (MIID) | LMMU110708PNER-MJ |
Product Features
| Family Description | Square shoulder endmills with tangential clamped insert with 4 edges | Country of Origin | JAPAN |
Shipping Info
Package Weight
2.271
