EEN09R040M32.0-04

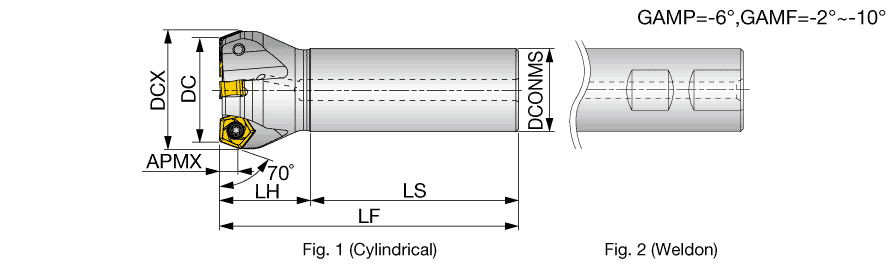

Indexable End Mill; 40 mm Dia. × 6.4 mm LOC × 32 mm Shank Dia. × 115 mm OAL ; Round Shank ; 70 Degrees
| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 40 mm | Functional Length (LF) | 115 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | 75 Facemills |
| Depth of Cut Maximum (APMX) | 6.4 mm | Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Overall Length (OAL) | 115 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Face Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 46 mm |
| Master Insert Identification (MIID) | PNMU0905GNEN-MJ |
Product Features
| Family Description | 70deg endmills with double sided pentagonal inserts. | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
1.781
