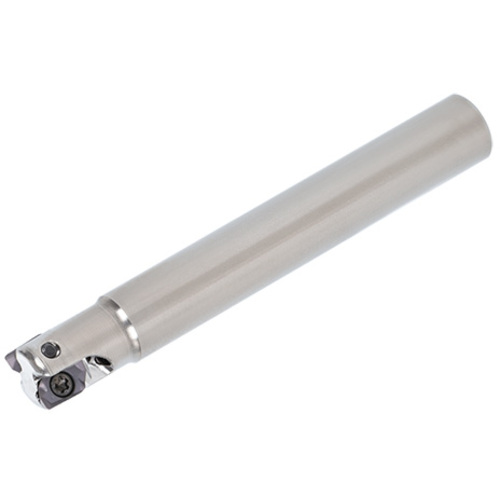

EPAV04M012C12.0R03L
Indexable End Mill; 12 mm Dia. × 4 mm LOC × 12 mm Shank Dia. × 120 mm OAL ; Round Shank ; 90 Degrees

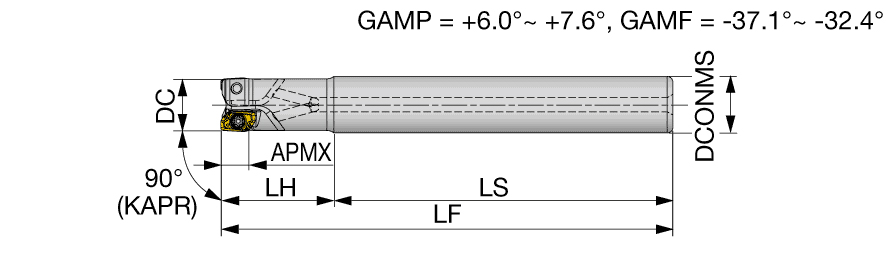

| Cutting Diameter (DC/DCX) | 12 mm | Master Insert Identification (MIID) | AVMT040204PPER-MM |
| Cutting Diameter (DC) | 12 mm | Head Length (LH) | 35 mm |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 120 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Cutting Diameter Maximum (DCX) | 12 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
Product Features
| Family Description | Square shoulder endmill, shank type, with screw clamp system | Country of Origin | JAPAN |
| Remarks | Note: Inserts with a PCD or a corner radius of 2 or greater are not suitable for ramping, plunging and helical interpolation application. |
Shipping Info
Package Weight
0.000
