EWD05050RU

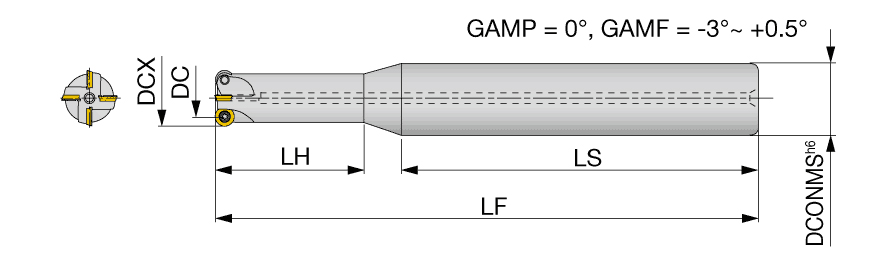

Indexable End Mill; 0.304″ Dia. × 0.098″ LOC × 3/4″ Shank Dia. × 5″ OAL
| Cutting Diameter (DC/DCX) | 0.304″ | Head Length (LH) | 3/4″ |
| Cutting Diameter (DC) | 0.304″ | Functional Length (LF) | 5″ |
| Cutting Item Count (CICT) | 2 | Tool Type | Corner rounding endmills |
| Depth of Cut Maximum (APMX) | 0.098″ | Measurement Type | Inch |
| Overall Length (OAL) | 5″ | Body Material | Steel |
| Application | | Profile Milling | | Shank Length (LS) | 3-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 1/2″ |
| Master Insert Identification (MIID) | RDMW0501M0 |
Product Features
| Family Description | Indexable endmills with buttom inserts of 2.5, 3.5, and 5mm radius | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.675
