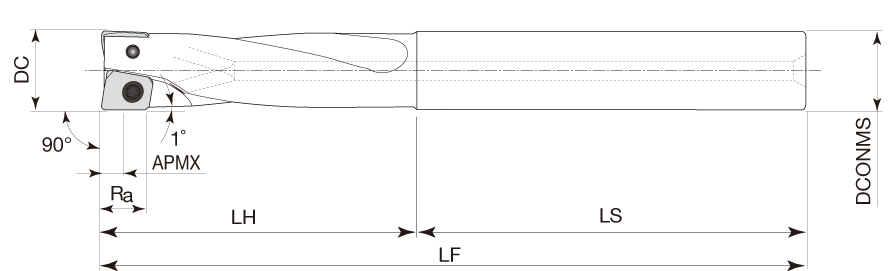

EVH06R010M10.0-02
| Cutting Diameter (DC/DCX) | 10 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 10 mm | Functional Length (LF) | 90 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 90 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Length (LS) | 50 mm |
| Master Insert Identification (MIID) | XVGT06H205EC-MJ | Cutting Diameter Maximum (DCX) | 10 mm |
Product Features
| Family Description | Multi purpose endmills with center edge in small diameter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.185
