EXH07R012M12.0-02

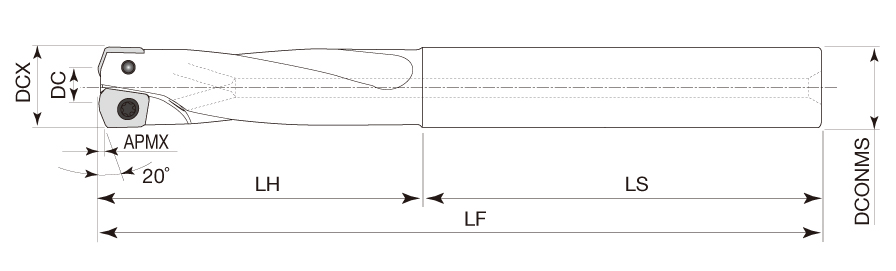

| Cutting Diameter (DC/DCX) | 12 mm | Head Length (LH) | 48 mm |
| Cutting Diameter (DC) | 12 mm | Functional Length (LF) | 98 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 0.6 mm | Tool Cutting Edge Angle (KAPR) | 20 Degrees |
| Overall Length (OAL) | 98 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Diameter Maximum (DCX) | 12 mm |
| Master Insert Identification (MIID) | XXGT07X305EC-MJ |
Product Features
| Family Description | Super high feed milling endmills with center cutting edge | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.245
