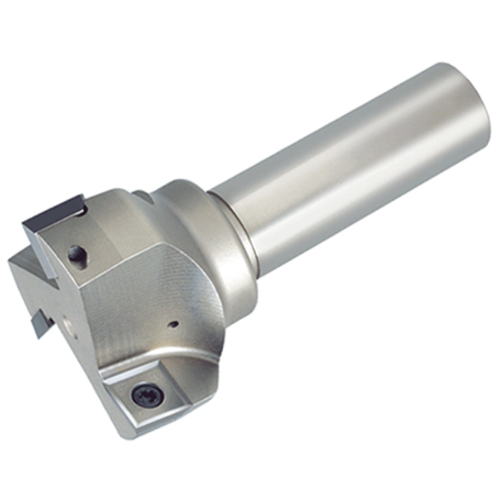

EFE12200RU
Indexable End Mill; 2″ Dia. × 0.315″ LOC × 3/4″ Shank Dia. × 3.406″ OAL ; 85.5 Degrees

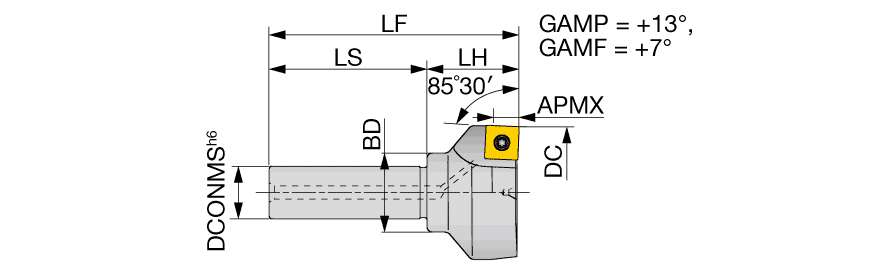

| Cutting Diameter (DC/DCX) | 2″ | Head Length (LH) | 1-3/8″ |
| Cutting Diameter (DC) | 2″ | Functional Length (LF) | 3.406″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 Facemills |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Cutting Edge Angle (KAPR) | 85.5 Degrees |
| Overall Length (OAL) | 3.406″ | Measurement Type | Inch |
| Application | | Face Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Length (LS) | 2.031″ |
| Master Insert Identification (MIID) | SEGW12X4ZEFR | Cutting Diameter Maximum (DCX) | 2.072″ |
Product Features
| Family Description | 85.5 deg endmills with screw clamped inserts for aluminum machining | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
1.131
