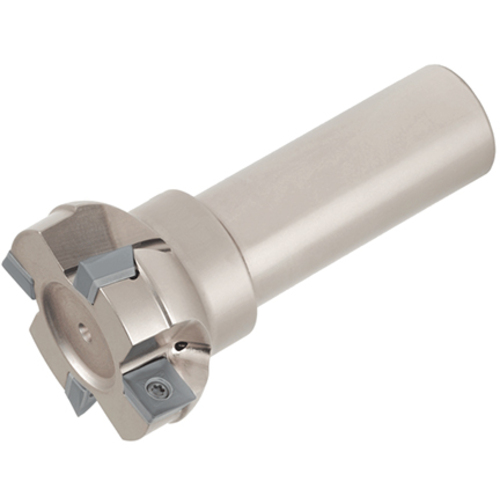

EPW13R063M32.0-04
Indexable End Mill; 63 mm Dia. × 10 mm LOC × 32 mm Shank Dia. × 120 mm OAL ; Round Shank ; 90 Degrees

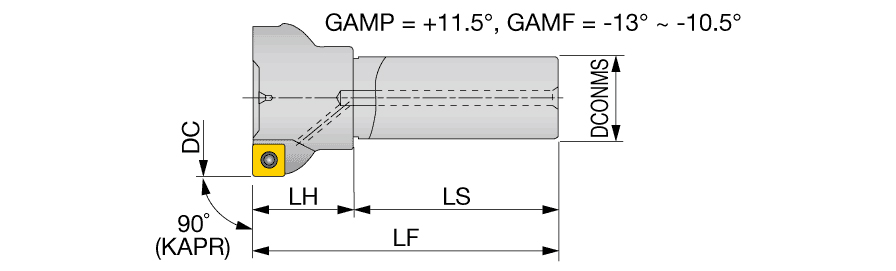

| Cutting Diameter (DC/DCX) | 63 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 63 mm | Functional Length (LF) | 120 mm |
| Cutting Item Count (CICT) | 4 | Tool Type | 45 Facemills |
| Depth of Cut Maximum (APMX) | 10 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 63 mm |
| Master Insert Identification (MIID) | SWMT1304PDPR-MJ |
Product Features
| Family Description | Square shoulder endmills with screw clamped SWMT/SWGT13 inserts. | Country of Origin | JAPAN |
Shipping Info
Package Weight
2.619
