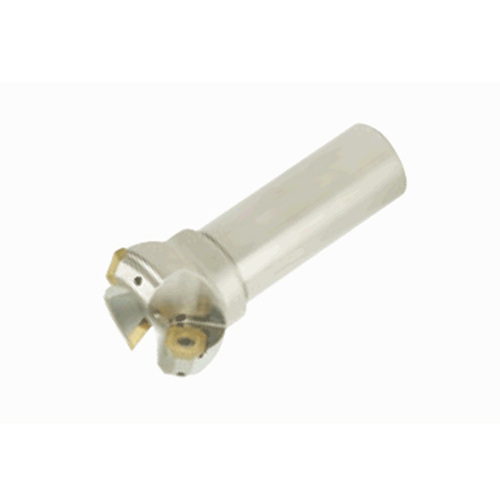

EAW13R025M25.0-02
Indexable End Mill; 25 mm Dia. × 5 mm LOC × 25 mm Shank Dia. × 115 mm OAL ; Round Shank ; 45 Degrees

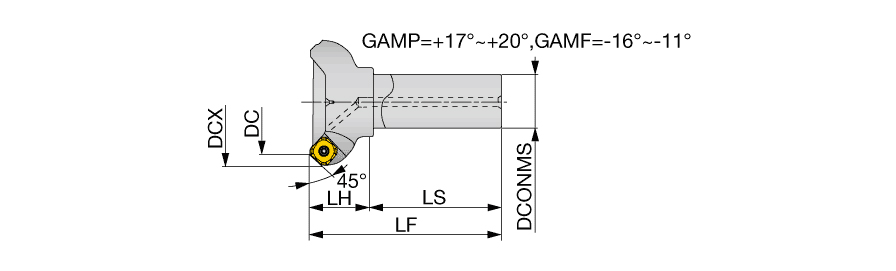

| Cutting Diameter (DC/DCX) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm | Functional Length (LF) | 115 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 45 Facemills |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 115 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Face Milling | | Shank Length (LS) | 80 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Cutting Diameter Maximum (DCX) | 39 mm |

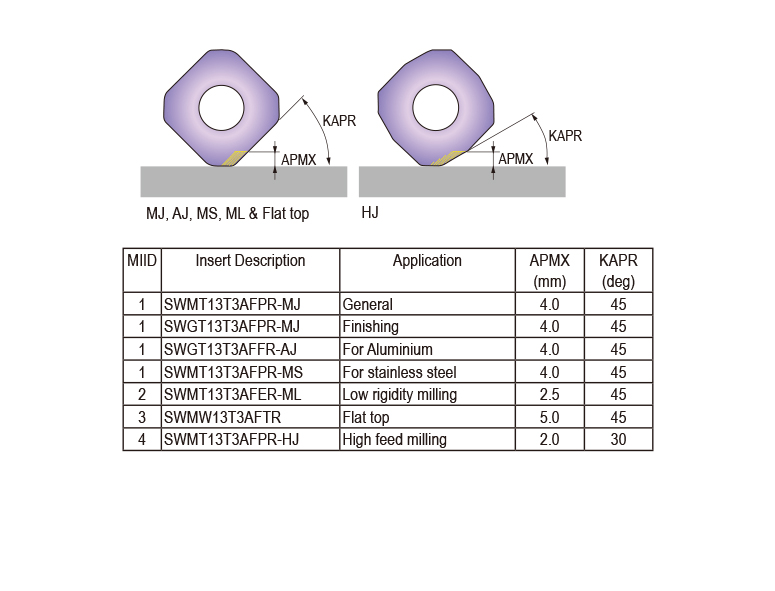

| Master Insert Identification (MIID) | SWMT13T3AFPR-MJ |
Product Features
| Family Description | 45deg endmills with screw crlamped SWMT/SWGT13 inserts. | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.402
