EXP09200RLU

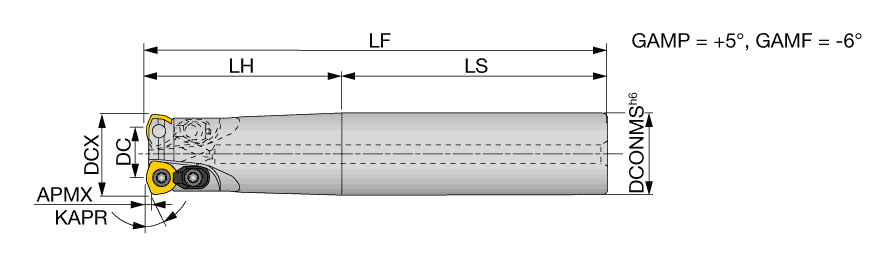

Indexable End Mill; 2″ Dia. × 0.118″ LOC × 1-1/4″ Shank Dia. × 9-3/4″ OAL ; Round Shank ; 20 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Head Length (LH) | 2″ |
| Cutting Diameter (DC) | 2″ | Functional Length (LF) | 9-3/4″ |
| Cutting Item Count (CICT) | 2 | Tool Type | Fast Feed Endmill |
| Depth of Cut Maximum (APMX) | 0.118″ | Tool Cutting Edge Angle (KAPR) | 20 Degrees |
| Overall Length (OAL) | 9-3/4″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | High Feed Milling | | Shank Length (LS) | 7-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 2″ |
| Master Insert Identification (MIID) | WPMT090725ZPR-ML |
Product Features
| Family Description | Super high feed endmill | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
