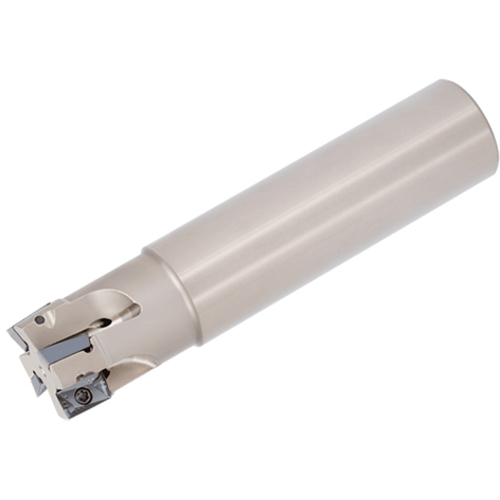

EPS11062RLU
Indexable End Mill; 5/8″ Dia. × 0.417″ LOC × 5/8″ Shank Dia. × 5-3/4″ OAL ; Round Shank ; 90 Degrees

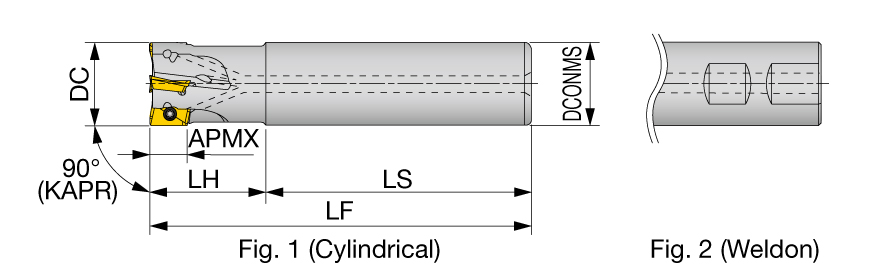

| Cutting Diameter (DC/DCX) | 5/8″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 5/8″ | Functional Length (LF) | 5-3/4″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.417″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5-3/4″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 4-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 5/8″ |
| Master Insert Identification (MIID) | ASMT11T304PDPR-MJ |
Product Features
| Family Description | High precision shoulder square endmills with ASMT/ASGT11inserts | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". |
Shipping Info
Package Weight
0.549
Related Documentation

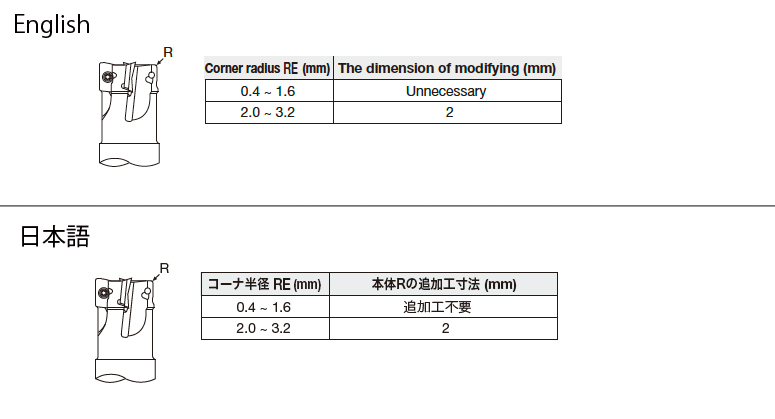

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
