EPA04R010M10.0-02

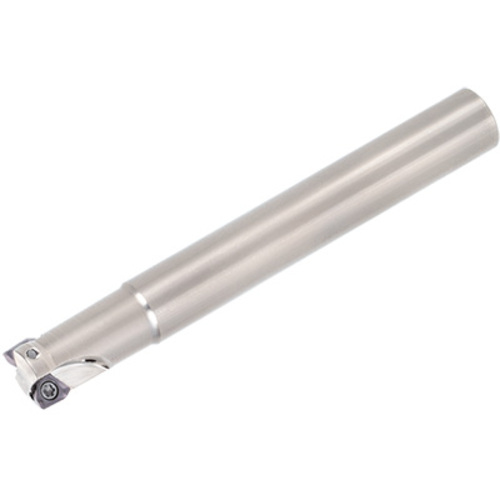

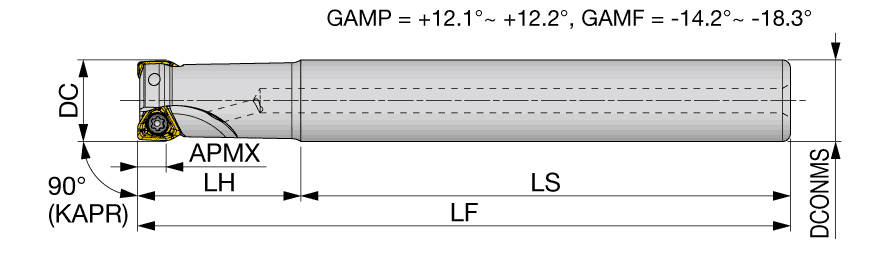

Indexable End Mill; 10 mm Dia. × 3.5 mm LOC × 10 mm Shank Dia. × 80 mm OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 10 mm | Master Insert Identification (MIID) | TOMT040204PXER-MM |
| Cutting Diameter (DC) | 10 mm | Head Length (LH) | 20 mm |
| Cutting Item Count (CICT) | 2 | Functional Length (LF) | 80 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm | Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 80 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Diameter Maximum (DCX) | 10 mm |
Product Features
| Family Description | High precision square shoulder endmill with triangular inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
