EXN02R062U0062-03L

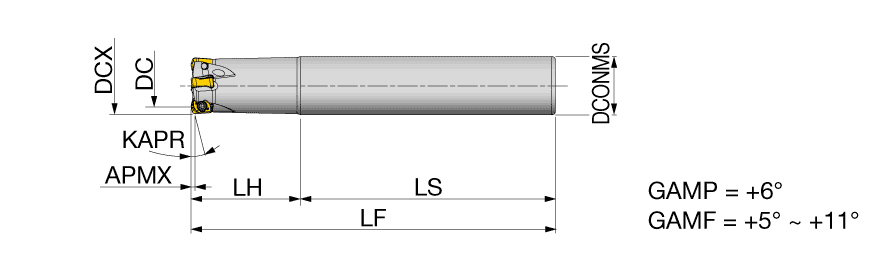

Indexable End Mill; 0.4603″ Dia. × 0.02″ LOC × 5/8″ Shank Dia. × 4-1/2″ OAL ; Round Shank ; 17 Degrees
| Cutting Diameter (DC/DCX) | 0.4603″ | Master Insert Identification (MIID) | LNMU0202ZER-MM |
| Cutting Diameter (DC) | 0.4603″ | Head Length (LH) | 2″ |
| Cutting Item Count (CICT) | 3 | Functional Length (LF) | 4-1/2″ |
| Depth of Cut Maximum (APMX) | 0.02″ | Tool Type | Fast Feed Endmill |
| Overall Length (OAL) | 4-1/2″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round | Measurement Type | Inch |
| Application | | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Diameter Maximum (DCX) | 5/8″ |
Product Features
| Family Description | High feed endmill, round shank type, with 4-corner double sided inserts | Country of Origin | JAPAN |
