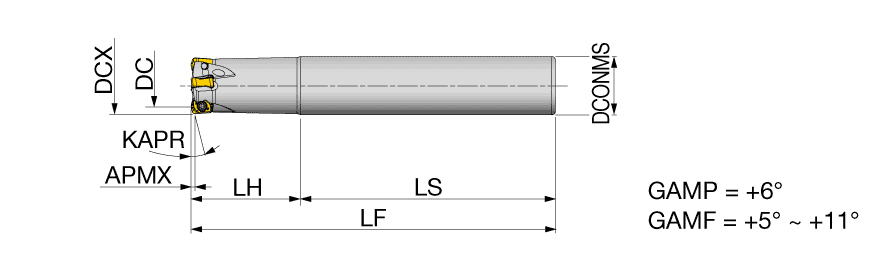

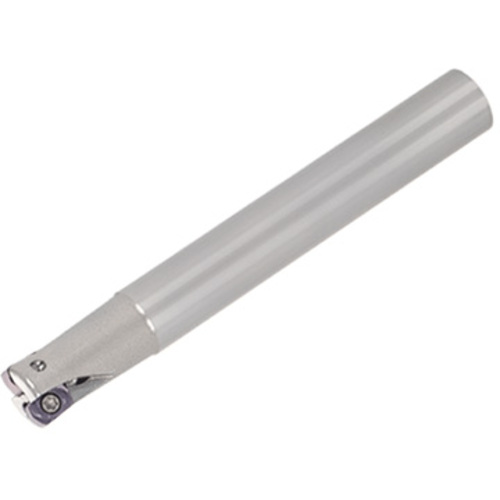

EXN02R016M16.0-04
Indexable End Mill; 11.8 mm Dia. × 0.5 mm LOC × 16 mm Shank Dia. × 100 mm OAL ; Round Shank ; 17 Degrees
| Cutting Diameter (DC/DCX) | 11.8 mm | Master Insert Identification (MIID) | LNMU0202ZER-MM |
| Cutting Diameter (DC) | 11.8 mm | Head Length (LH) | 30 mm |
| Cutting Item Count (CICT) | 4 | Functional Length (LF) | 100 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm | Tool Type | Fast Feed Endmill |
| Overall Length (OAL) | 100 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round | Measurement Type | Metric |
| Application | | High Feed Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
Product Features
| Family Description | High feed endmill, round shank type, with 4-corner double sided inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
