EVX10020RSU
Indexable End Mill; 0.787″ Dia. × 0.354″ LOC × 3/4″ Shank Dia. × 3.281″ OAL ; Weldon Shank ; 90 Degrees

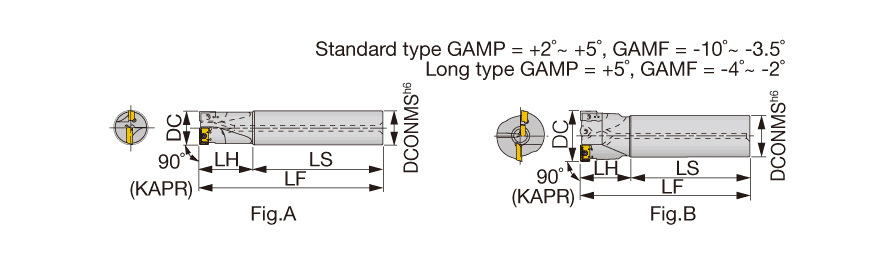

| Cutting Diameter (DC/DCX) | 0.787″ | Head Length (LH) | 1-1/4″ |
| Cutting Diameter (DC) | 0.787″ | Functional Length (LF) | 3.281″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.354″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 3.281″ | Measurement Type | Inch |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 2.031″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Diameter Maximum (DCX) | 0.787″ |
| Master Insert Identification (MIID) | XXMU10H308PR-MJ |
Product Features
| Family Description | Multi purpose endmills with center edge in medium diameter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.540
