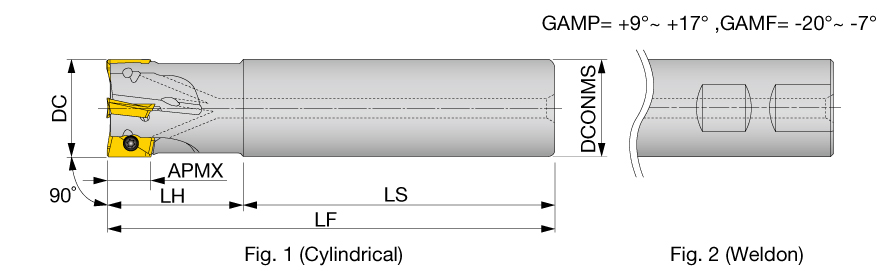

EPS17125RLU
Indexable End Mill; 1-1/4″ Dia. × 0.64″ LOC × 1-1/4″ Shank Dia. × 10″ OAL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 3″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 10″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 0.64″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 10″ | Measurement Type | Inch |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 7″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Master Insert Identification (MIID) | ASMT170508PDPR-MJ |
Product Features
| Family Description | Shoulder square endmills with ASMT/ASGT17 inserts | Country of Origin | Japan |
Shipping Info
Package Weight
3.603
