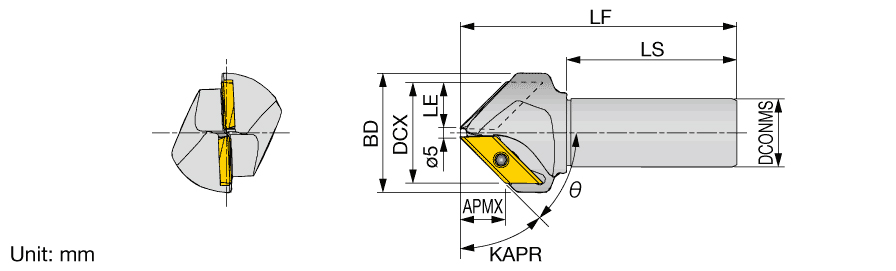

ECC31005RU-60
Indexable End Mill; 2.17″ Dia. × 0.571″ LOC × 1″ Shank Dia. × 4.252″ OAL ; 30 Degrees
| Cutting Diameter (DC/DCX) | 2.17″ | Head Length (LH) | 1.971″ |
| Cutting Diameter (DC) | 2.17″ | Functional Length (LF) | 4.252″ |
| Cutting Item Count (CICT) | 2 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.571″ | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Overall Length (OAL) | 4.252″ | Measurement Type | Inch |
| Application | | Multi Functional tools | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Length (LS) | 2.281″ |
| Master Insert Identification (MIID) | XCET310404ER | Cutting Diameter Maximum (DCX) | 2.834″ |
Product Features
| Family Description | Indexable chamfering cutter with large parallelogram insert | Country of Origin | Japan |
Shipping Info
Package Weight
2.185
