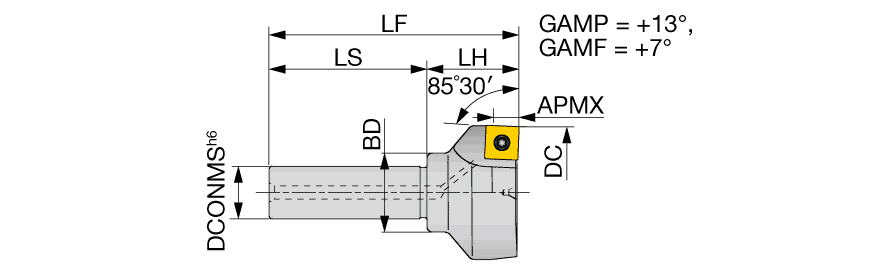

EFE12050R
Indexable End Mill; 50 mm Dia. × 8 mm LOC × 20 mm Shank Dia. × 95 mm OAL ; 85.5 Degrees
| Cutting Diameter (DC/DCX) | 50 mm | Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 50 mm | Functional Length (LF) | 95 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 Facemills |
| Depth of Cut Maximum (APMX) | 8 mm | Tool Cutting Edge Angle (KAPR) | 85.5 Degrees |
| Overall Length (OAL) | 95 mm | Measurement Type | Metric |
| Application | | Face Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Length (LS) | 60 mm |
| Master Insert Identification (MIID) | SEGW12X4ZEFR | Cutting Diameter Maximum (DCX) | 51.83 mm |
Product Features
| Family Description | 85.5 deg endmills with screw clamped inserts for aluminum machining | Country of Origin | JAPAN |
| Remarks | APMX may vary with insert type. |
Shipping Info
Package Weight
1.208
