EDPD09063R

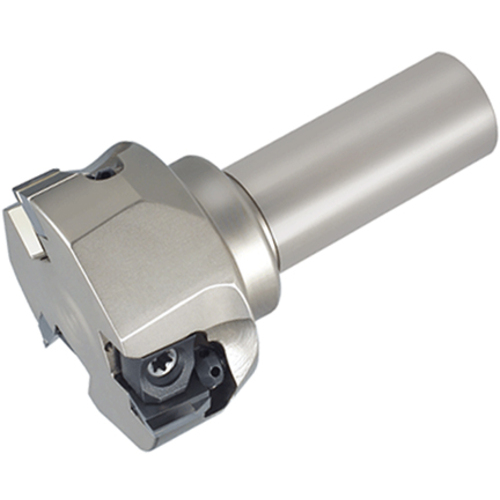

Indexable End Mill; 63 mm Dia. × 7 mm LOC × 25 mm Shank Dia. × 100 mm OAL ; 90 Degrees

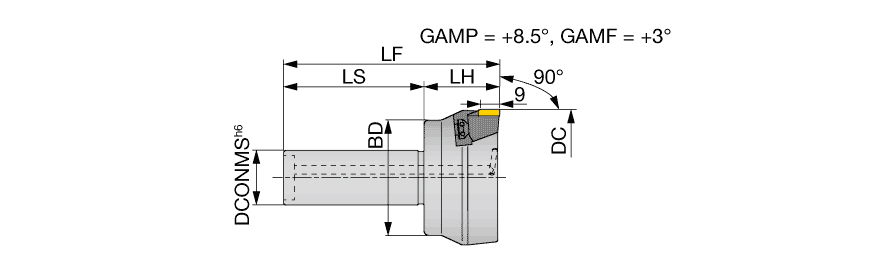

| Cutting Diameter (DC/DCX) | 63 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 63 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 7 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Application | | Shoulder Milling | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Shank Length (LS) | 60 mm |
| Master Insert Identification (MIID) | YDEN0905PDFR-D | Cutting Diameter Maximum (DCX) | 63 mm |
Product Features
| Family Description | Light weight suqare endmills with PCD inserts for alminum machining | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.984
